Installing a Pelican series water filter or water softener has never been easier than with the Pelican Whole House Installation Kit.
What's included:
A) One (1) Roll of plumber's tape
B) One (1) John Guest 1" Male NPT Connector
C Three (3) John Guest 1" NPT to Stem

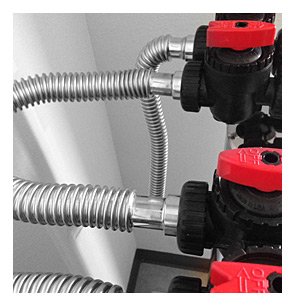

D) Two (2) 1" John Guest to Clack 24" Stainless Flex Pipe
E) One (1) Clack to Clack 18" Stainless Flex Pipe
F) Four (4) Threaded Collars (Preassembled)
G) Four (4) Split Rings (Preassembled)
H) Four (4) O-rings (Preassembled)
Special Note for PVC users: John Guest fittings will only connect to copper, cPVC and PEX pipe materials. For your convenience, there are two (2) additional John Guest 1" NPT to Stem to convert your PVC pipes to the Pentair Pro Kit. Simply insert the stem ends of each fitting into the John Guest ends of the Flex Pipe and Inlet side of the prefilter and thread your PVC to the 1" Male threaded NPT end of the stem fitting.
- With this helpful kit, there is never any need to deal with the mess of cutting pipes or glue.
-
This convenient install kit uses John Guest Quick Fittings for cPVC, Copper and Pex.
- All you need to do is to bring the incoming and outgoing water lines to the John Guest fittings and connect them.
- Use this kit for the dual-tank combos PSE1800, PSE2000

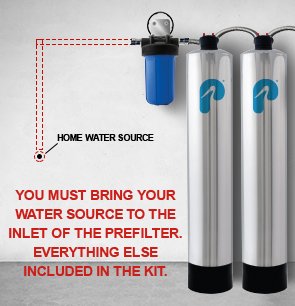

In most cases, additional piping and fittings will be needed to bring the incoming and outgoing water lines to the John Guest connections in this kit (check image diagram).
Q. Will I need additional piping or fittings? |
Yes (check image diagram). Depending on your installation, you will likely need some piping and fittings to bring your incoming and outgoing water lines to the John Guest connections provided with this kit. However, you will not need additional fittings for the Prefilter to Tank connections on the Pelican system. |
Owner's Manual for Pelican Dual Tank Install Kit
