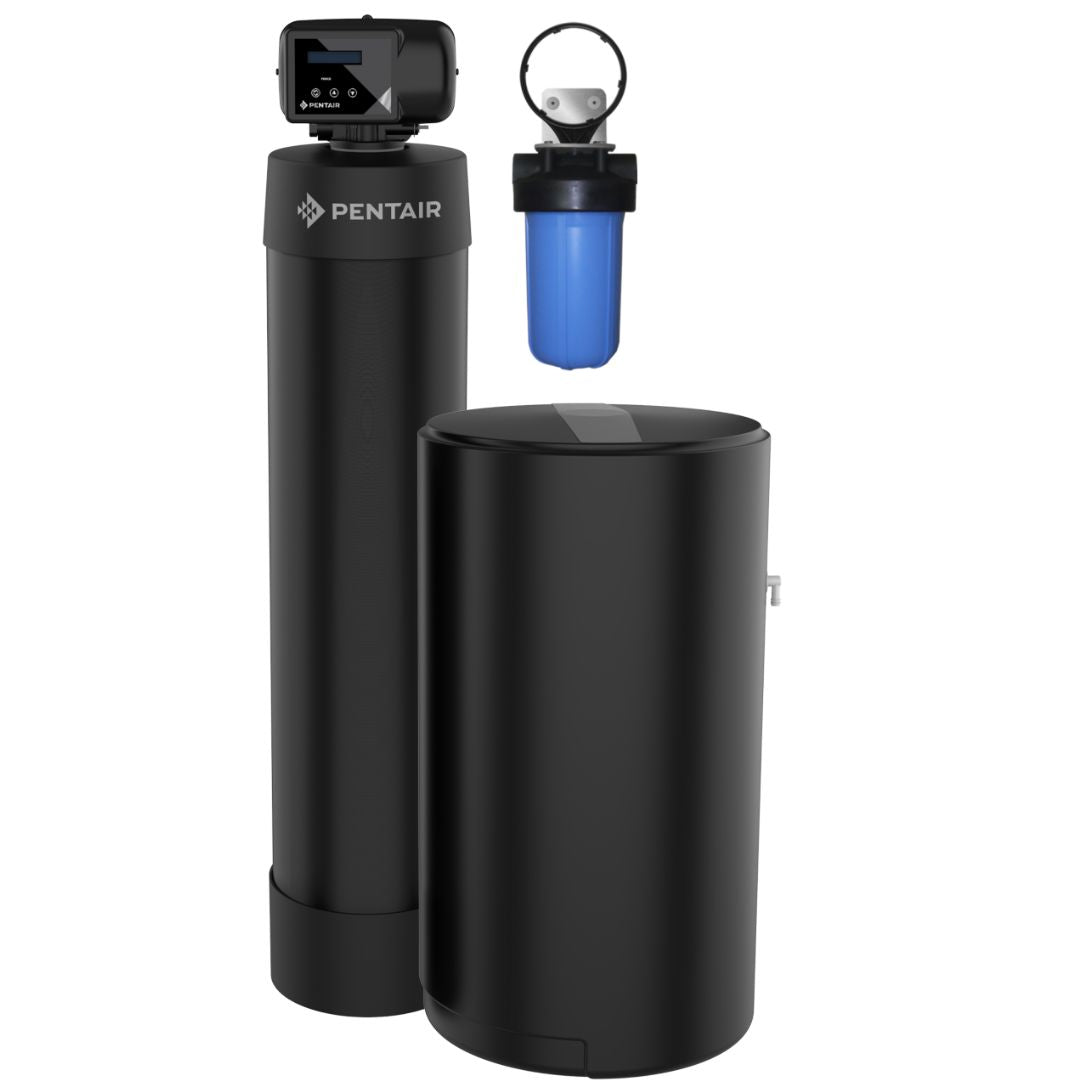

Pentair Pelican Salt-Based Water Softener System


Regular price
Price: $1,580.00 USD
Regular price
List Price:
Sale price
Price: $1,580.00 USD
System Size
View Cart

Availability: Only 5 in stock

Most orders ship within 2-3 business days


Reduce the worry that hard water can cause.

Hard water can be a nuisance. Your dishes sport spots, and your laundry may come out stiff and dull. Dry skin and hair are common complaints. Inefficient appliance operation may lead to increased water and energy costs.

A Pentair Whole House Water Softening System reduces the calcium,
magnesium, and other dissolved minerals that cause hard water before they
enter your home. So you can enjoy clearer dishes, softer clothes, softer
skin and hair, and lower water and energy bills.

Hard water can create more than just a nuisance - it can cause higher water bills, wear out fabrics and deteriorate pipes. Pentair water softening systems eliminate dissolved minerals to help prevent such disturbances.

Pentair's whole house water softening systems are fuss-free with their electronic control that is user-friendly to configure. An automatic bypass function ensures continuous water supply to the house during the regeneration process.

When it comes to water, every home and every family is different.
Whether you’re on a well or you get city water, it might be very
different across town, or even across the street. At Pentair, we offer
water treatment solutions that can be tailored to your needs. So you get
the clearer, fresher water you want. And the peace of mind you need.


  • Reduces minerals so your clothes and dishes come out clean, your appliances run smooth, and your water tastes great
  • Automatically regenerates only when necessary, so it uses less salt which saves you time and money
  • Self-cleaning design keeps the system running smoothly with little maintenance, so you don’t have to think about it
  • Simple, electronic system for easy programming; maintains settings during power outages
  • Automatic bypass for uninterrupted water flow to the home during regeneration
  • Singular, rotary disc seal for longer life and lower maintenance
  • Self-cleaning brine injector reduces maintenance
  • Safety valve prevents brine tank overflow
  • Highly-efficient, chlorine-resistant resin for longer life
  • Demand-initiated system regenerates when necessary, based on water usage, saving salt and water

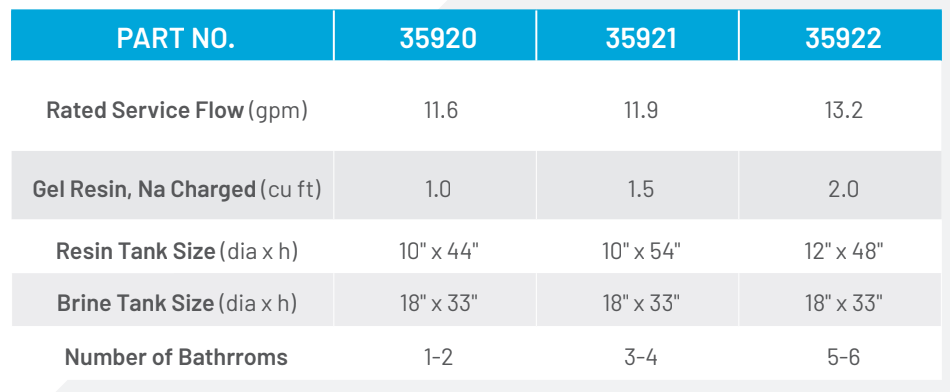

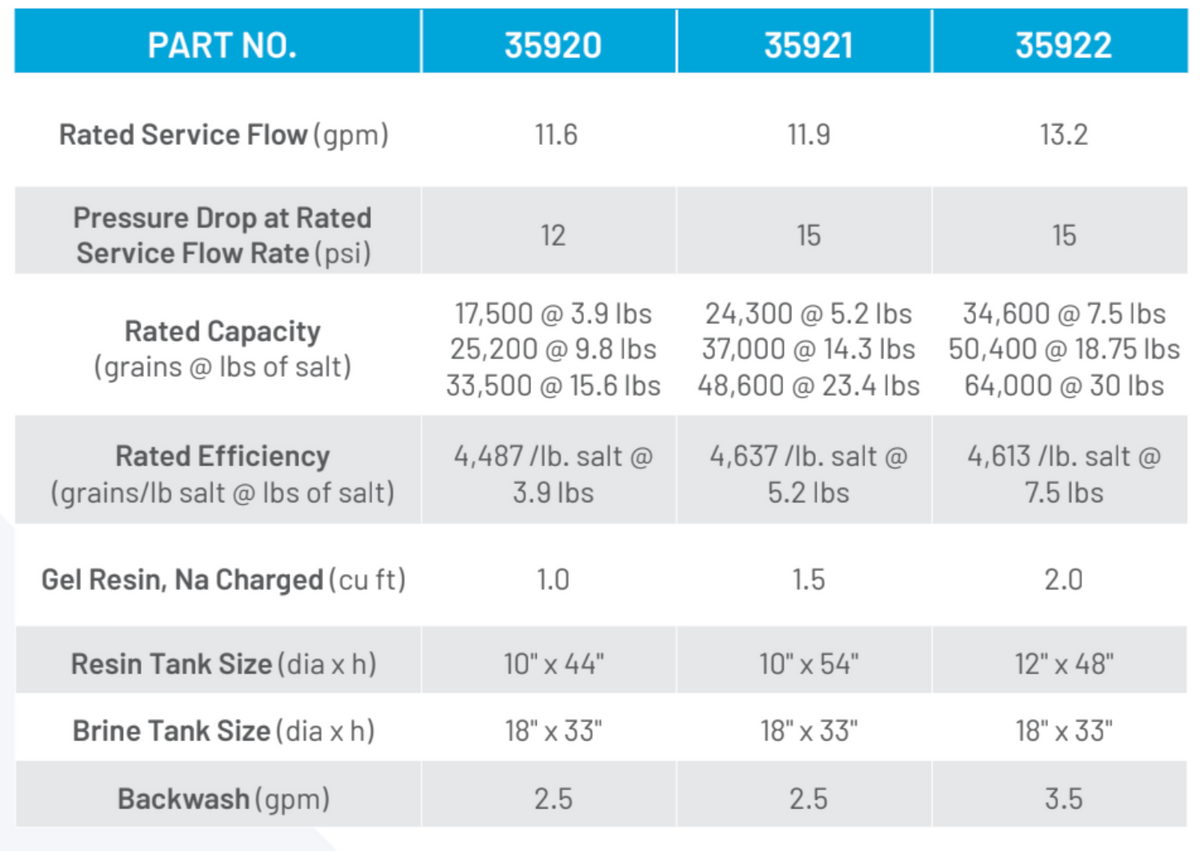

  • 1.0, 1.5 and 2.0 cubic foot capacities available to meet household demand requirements

Valve Body Glass-Filled Thermoplastic
Rubber Components Compounded For Cold Water
Operating Pressure 20 - 120 psi (1.38 - 8.27 bar)
Water Temperature 40° - 100°F (4.4° - 38°C)
Ambient Temperature 40° - 100°F (4.4° - 38°C)

Input Supply Frequency 50 or 60 Hz
Motor Input Voltage 24 Volt – DC

Controller System Power Consumption 3 Watts Average
Transformer Input Options 115 Volt – AC 50/60 Hz
Transformer Output Voltage 24 Volt - AC 500 mA

Downflow/Upflow Downflow Only
Adjustable Cycles Yes
5 Cycle Valve 1) Service/Home
2) Backwash
3) Brine Draw
4) Fast Rinse
5) Brine Fill

Tank Thread 2-1/2" – 8, Male
Drain Line 3/4" NPT, Female
Brine Line 3/8" Tube Fitting
In/Out Bypass Valve Included
Drain Line Elbow Fitting 1/2" Hose Barb Included
In/Out Plumbing
Connection 3/4" NPT,
Male Plastic Fittings

Limited Lifetime Warranty

Pelicans Limited Lifetime Warranty:
Pelican Water ("Pelican") warrants to the end user ("customer") that its tanks (13" and smaller), valves, in/out non-electric heads, bypass's, fittings and housings for POE systems ("Covered Items") will be free from defects in material and workmanship under normal use and service for a limited lifetime of twelve (12) years from the date of original purchase**.

Limitations and Responsibilities:
Pelican's obligation to the customer under these warranties shall be limited, at Pelican's option, to replacement or repair of Covered Items by these warranties, labor is not covered. These warranties do not cover replacement filter cartridges, elements or lamps. Prior to return or repair of Covered Items, the customer must obtain a return goods authorization number from Pelican by/at and at Pelicans option, return the Covered Items freight prepaid. Any Covered Item repaired or replaced under these warranties will be returned prepaid standard freight to the original point of shipment. Expedited freight options are available at customer expense.

No warranty is made, and is explicitly excluded, with respect to defects or damages due to neglect, misuse, alterations, accident, misapplication, physical damage, or damaged caused by fire, acts of God, or freezing. These warranties apply only to the original registered owner so long as the owner owns/lives in the home in which the unit was originally installed. Customer must register their system with Pelican within 90 days of purchase* in order to obtain a warranty. Warranty will discontinue after the unit is removed from the location where it was originally installed. Warranty begins on the date of delivery of product to the customer. Improper maintenance of system (ie not replacing filters or media, for example) on time will be considered "neglect" and explicitly excluded from the warranty. Installation of any system on water conditions outside of or beyond the recommended specs of any system voids any warranty.

Pelican gives this warranty to the original owner/customer in lieu of all other warranties, express or implied, including without limitation any implied warranties of merchantability or fitness for a particular purpose or treatment of certain water and hereby expressly disclaims all other such warranties. THE WARRANTIES PELICAN GIVES IN THE ABOVE PARAGRAPHS ARE EXCLUSIVE, PELICAN DISCLAIMS ALL OTHER WARRANTIES, EXPRESS, IMPLIED OR STATUTORY AND SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR IMPLIED WARRANTY OF WORKMANLIKE PERFORMANCE. Pelican's liability hereunder shall not exceed the cost of the product. Under no circumstances will Pelican be liable for any incidental or consequential damages or for any other loss, damage or expense of any kind, including loss of use, arising in connection with the installation or use or inability to use the Covered Items or any water treatment system the Covered Items are incorporated into. These warranties are governed by the laws of the state of Florida and may change at any time without notice.

*Failure by California and Quebec residents to complete the product registration form does not diminish their warranty rights. **For all orders placed on or after June 3rd, 2011.
